Flexible Stainless Steel Cable Mesh For Fall Protection System

Product Categories
Anping County Huihao Wire Mesh Manufacture Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

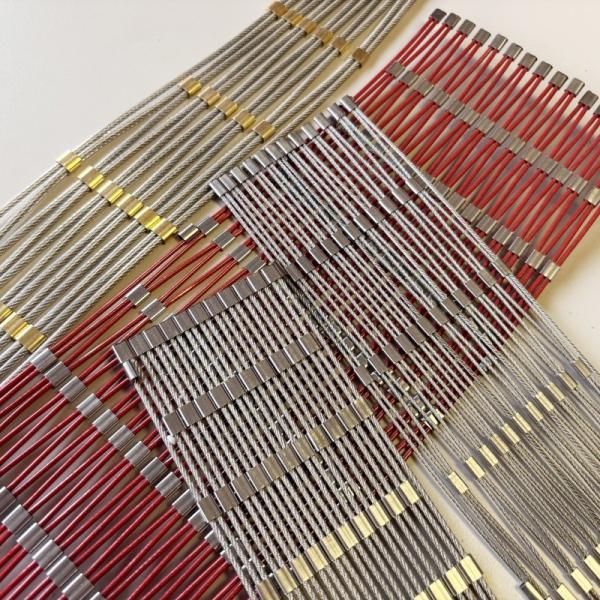

Flexible Stainless Steel Cable Mesh For Fall Protection System

  • 1
  • 2
  • 3

Brand Name : HUIHAO KASITE

Model Number : HH-SCM-1.5

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10 square meters

Price : USD14-USD28/M2

Payment Terms : T/T

Supply Ability : 60000 SQUARE METERS PER 30 DAYS

Delivery Time : WITHIN 7 WORK DAY

Packaging Details : PALLET OR ACCRODING TO YOUR REQUAEST

Name : stainless steel cable mesh

Application : fall protection

max length : 6000mm

max height : 2500mm

Customized : installation system and install parts

Finished : colored treatment

Contact Now

Flexible Stainless Steel Cable Mesh For Fall Protection System
The horizontal mesh diamond direction is suitable for small, individual panels. When wire rope netting mesh panels are joined continuously, Huihao offers a vertical mesh diamond direction that can be assembled on-site with proper tools. For larger mesh widths and safety-critical applications, vertical mesh diamond direction is recommended.
Key Dimensions & Specifications
  • Maximum length: 6000 mm
  • Maximum height: 2500 mm
  • Profile diameter: Ø 16.0 mm to Ø 48.3 mm
  • Maximum weight: 50 kg
  • Special geometries available
  • Custom frame details upon request
Stainless steel cable mesh maintains its structural integrity under self-weight and additional loads. The uniform tension distribution across the rope net surface ensures exceptional stability.
Flexible Stainless Steel Cable Mesh For Fall Protection System
Our cable mesh supports three-dimensional tension loads, with shaping controlled by strategic placement of tensioning elements. The lightweight construction offers excellent economic efficiency while maintaining structural performance.
Specification of Stainless Steel Cable Mesh
Item No. Cable Diameter Mesh Opening Size (W×H)
HH-32120F1/8 inch (3.2 mm)4.75 x 8.23 inch (120 x 207.8 mm)
HH-32102F1/8 inch (3.2 mm)4 x 6.9 inch (102 x 176.7 mm)
HH-3290F1/8 inch (3.2 mm)3.55 x 6.15 inch (90 x 156 mm)
HH-3276F1/8 inch (3.2 mm)3 x 5.2 inch (76 x 131.6 mm)
HH-3251F1/8 inch (3.2 mm)2 x 3.46 inch (51 x 88.3 mm)
HH-24102F3/32 inch (2.4 mm)4 x 6.9 inch (102 x 176.7 mm)
HH-2490F3/32 inch (2.4 mm)3.55 x 6.15 inch (90 x 156 mm)
HH-2476F3/32 inch (2.4 mm)3 x 5.2 inch (76 x 131.6 mm)
HH-2460F3/32 inch (2.4 mm)2.4 x 4.16 inch (60 x 104 mm)
HH-2451F3/32 inch (2.4 mm)2 x 3.46 inch (51 x 88.3 mm)
HH-2076F5/64 inch (2.0 mm)3 x 5.2 inch (76 x 131.6 mm)
HH-2060F5/64 inch (2.0 mm)2.4 x 4.16 inch (60 x 104 mm)
HH-2051F5/64 inch (2.0 mm)2 x 3.46 inch (51 x 88.3 mm)
HH-2038F5/64 inch (2.0 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1676F1/16 inch (1.6 mm)1.2 x 2.08 inch (76 x 131.6 mm)
HH-1651F1/16 inch (1.6 mm)2 x 3.46 inch (51 x 88.3 mm)
HH-1638F1/16 inch (1.6 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1630F1/16 inch (1.6 mm)1.2 x 2.08 inch (30 x 52 mm)
HH-1625F1/16 inch (1.6 mm)1 x 1.73 inch (25.4 x 44 mm)
HH-1238F3/64 inch (1.2 mm)1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1230F3/64 inch (1.2 mm)1.2 x 2.08 inch (30 x 52 mm)
HH-1225F3/64 inch (1.2 mm)1 x 1.73 inch (25.4 x 44 mm)
HH-1220F3/64 inch (1.2 mm)4/5 x 1.39 inch (20 x 34.6 mm)
Applications of Stainless Steel Cable Mesh
  • Balustrading
  • Fall protection systems
  • Security fencing
  • Trellis for small plants
  • Architectural decoration
  • Space separation
  • Shopfitting solutions
  • Building cladding
  • Railing refurbishment
