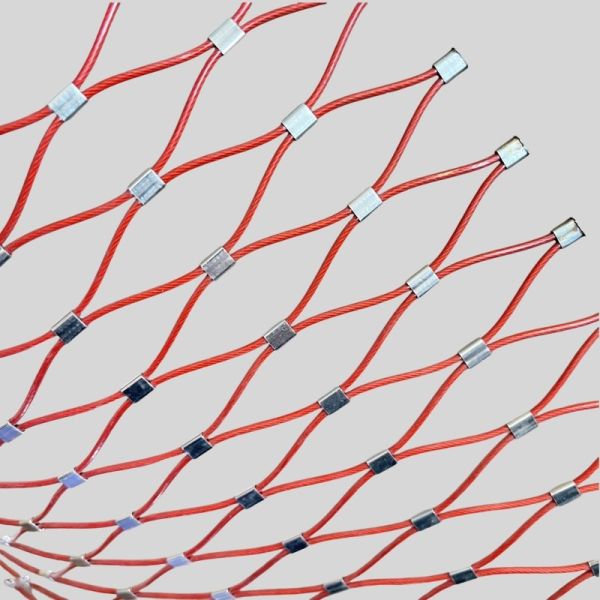

PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

  • 1
  • 2
  • 3

Model Number : HH-1.5mm

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10 square meters

Price : USD8-26/M2

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 30000 square meters per 10 days

Delivery Time : within 15 work days

Packaging Details : rolls with plastic film, then put into wooden case

Name : Ferrule wire rope mesh

Material : stainless steel 304/316/316L

wire diameter : 1mm-6mm

Mesh Size : 20mm-200mm

Surface treatment : silver or black oxide finish

Cover : PVC coated

Mesh direction : Horizontal , Vertical

Construction Of Wire Cable : 7x7, 7x19

Customized : Frame System Design

Usage : Safety Net，Balcony Stair Fence

Contact Now

PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
Product Specifications
Attribute Value
Name Ferrule wire rope mesh
Material Stainless steel 304/316/316L
Wire Diameter 1mm-6mm
Mesh Size 20mm-200mm
Surface Treatment Silver or black oxide finish
Cover PVC coated
Mesh Direction Horizontal, Vertical
Construction Of Wire Cable 7x7, 7x19
Customization Frame System Design
Usage Safety Net, Balcony Stair Fence
Product Overview
PVC coated ferrule type wire rope net combines stainless steel cables with durable ferrules made of matching grade stainless steel. This construction offers excellent physical properties while maintaining a clean, professional appearance.
Key Features
  • Material options: Stainless steel 304, 304L, 316, 316L
  • Ferrule material: Tinned copper, nickel plated copper, or stainless steel
  • Surface treatment: Silver or black oxide finish
  • Wire cable construction: 7×7 or 7×19
  • Cable diameter range: 1.0-5.0 mm
  • Mesh opening sizes: 20-200 mm
  • Standard mesh opening angle: 60° (custom angles available)
  • Connection method: Ferrule or knotted
  • Certification: EN1263-1 compliant for static and dynamic load capacity
Product Visuals
PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
Technical Specifications
Cable Diameter (inch) Cable Diameter (mm) Mesh Opening Size (inch) Mesh Opening Size (mm)
1/8 3.2 2 x 3.46 51 x 88.3
3/32 2.4 2 x 3.46 51 x 88.3
5/64 2.0 2.4 x 4.16 60 x 104
5/64 2.0 2 x 3.46 51 x 88.3
5/64 2.0 1-1/2 x 2.6 38 x 65.8
1/16 1.6 2 x 3.46 51 x 88.3
1/16 1.6 1-1/2 x 2.6 38 x 65.8
1/16 1.6 1.2 x 2.08 30 x 52
1/16 1.6 1 x 1.73 25.4 x 44
Product Variations
PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7 PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
Applications
Stainless steel cable mesh is primarily used in construction for wild zoos, large animal enclosures, aviaries, garden green walls, and as handrail infill or safety mesh. The ferrule type offers superior aesthetic appeal and is ideal for architectural applications requiring both decorative and protective functions.
PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
Key Advantages
  • High tensile strength with light weight
  • Environmentally safe and natural appearance
  • Excellent weather and corrosion resistance
  • High transparency with good invisible effect
  • Large mesh span suitable for extensive surface installations
  • Durable structure with over 30 years service life
  • Flexible design options for various graphics and structures
  • Easy installation on any supporting structure
PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
Packaging Options
Standard Packaging: Rope mesh without frame is packed in rolls with protective plastic film, then placed in wooden cases. Framed rope mesh is securely fastened on pallets for safe transportation.
PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7
